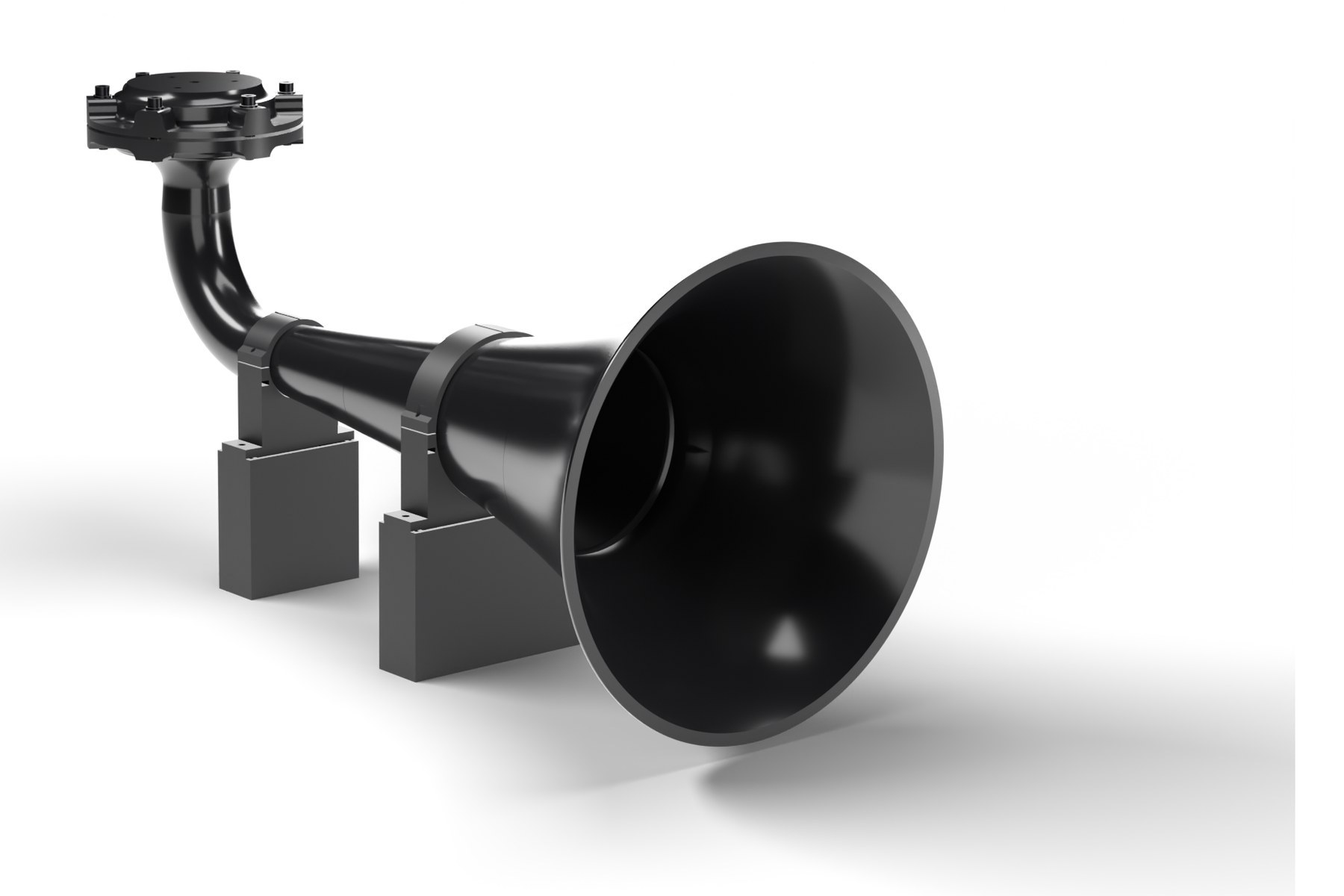

Picture of the design. Each horn is printed and finished by hand.
Shop / Horns & whistles
M1 Ship Horn
Single-trumpet air horn on a gooseneck.
$659
- Made to order, finished and tested by hand
- Follow every stage on your private order page
- Deposit by PayPal starts your order
- Spare and upgrade parts in the shop
Where it fits and how to feed it air

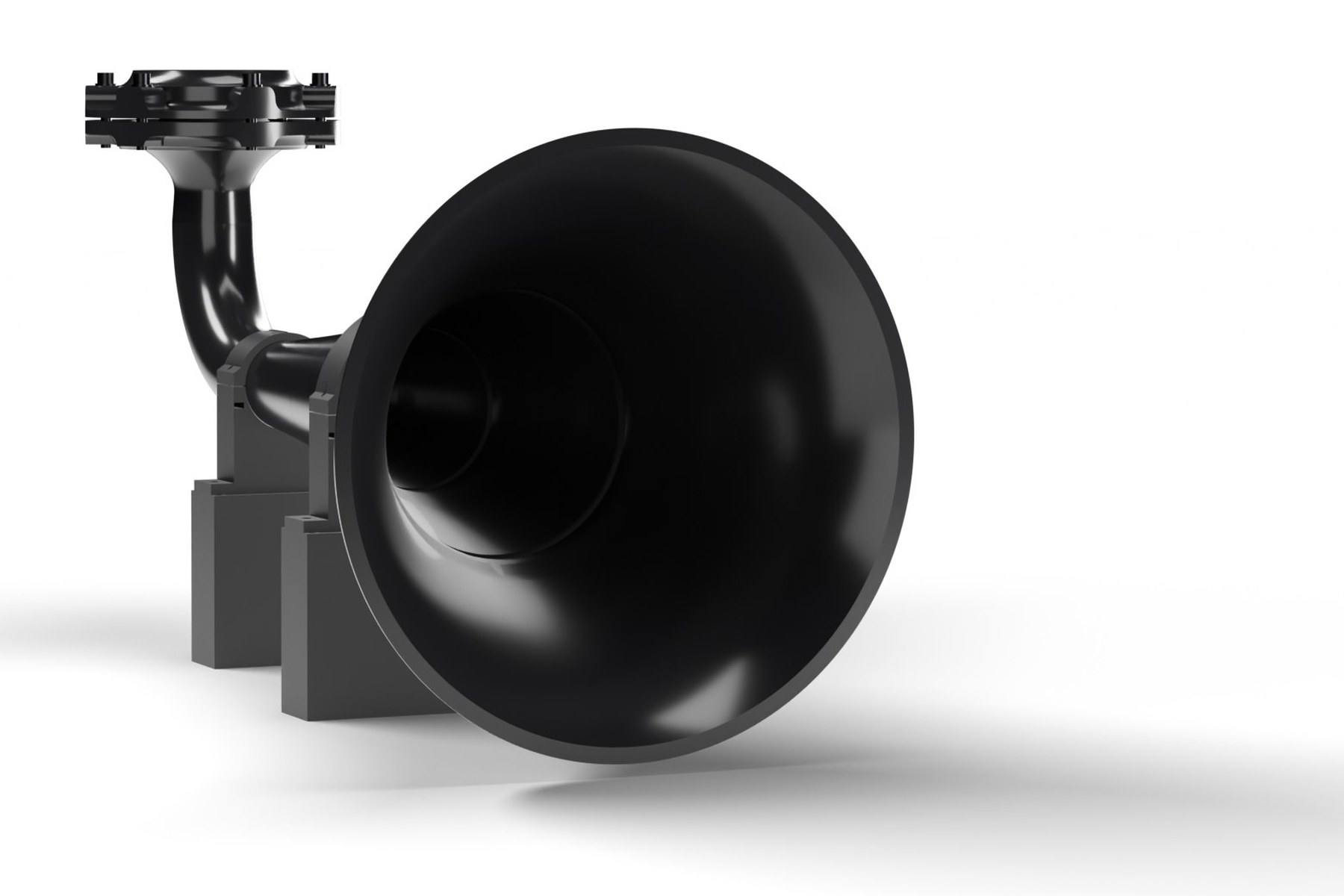

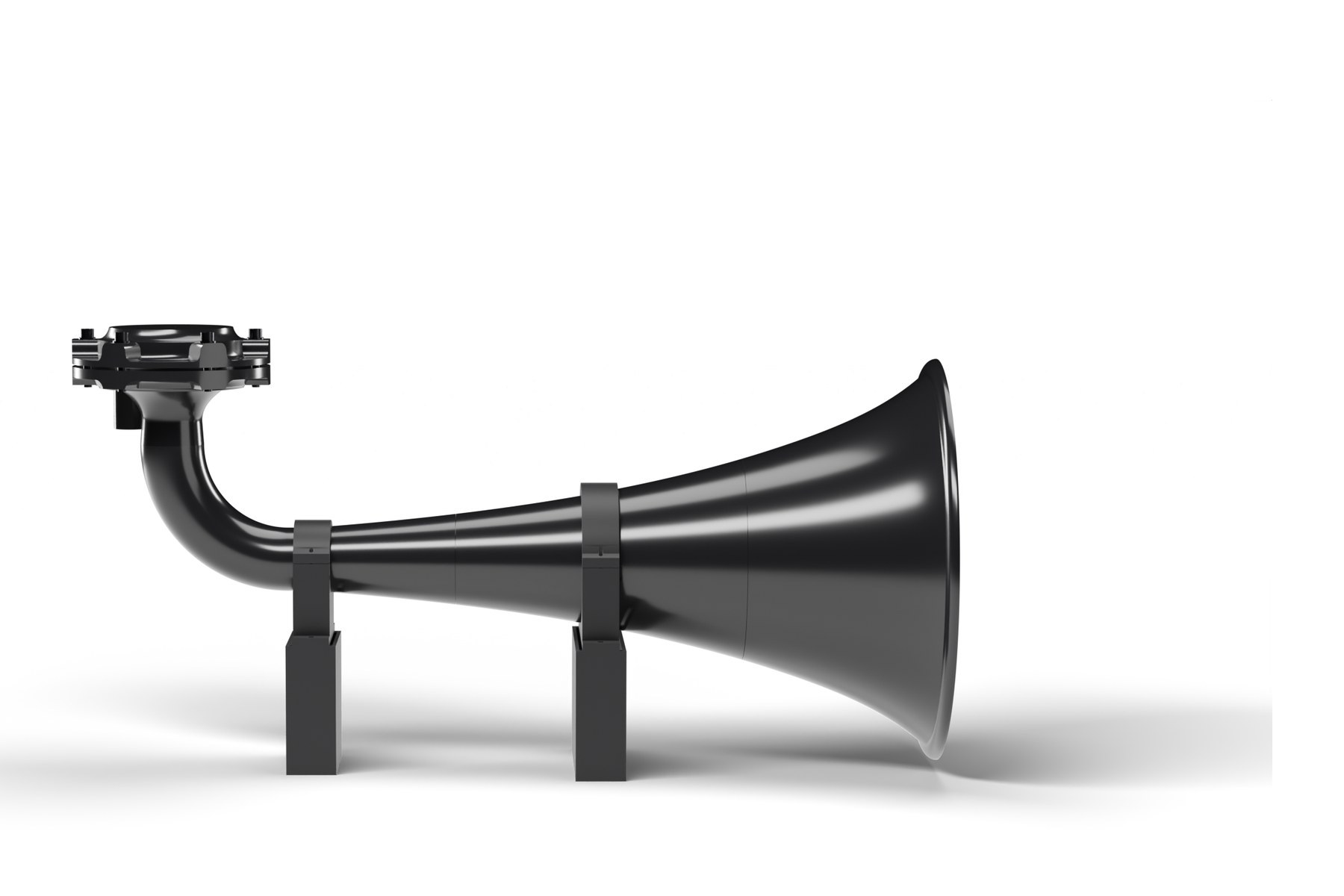

A single-note air horn in the shape of a big ship's horn: the drum sits up on a gooseneck and the bell opens in one smooth flare to a 19 in mouth. Printed in black PETG and finished by hand.

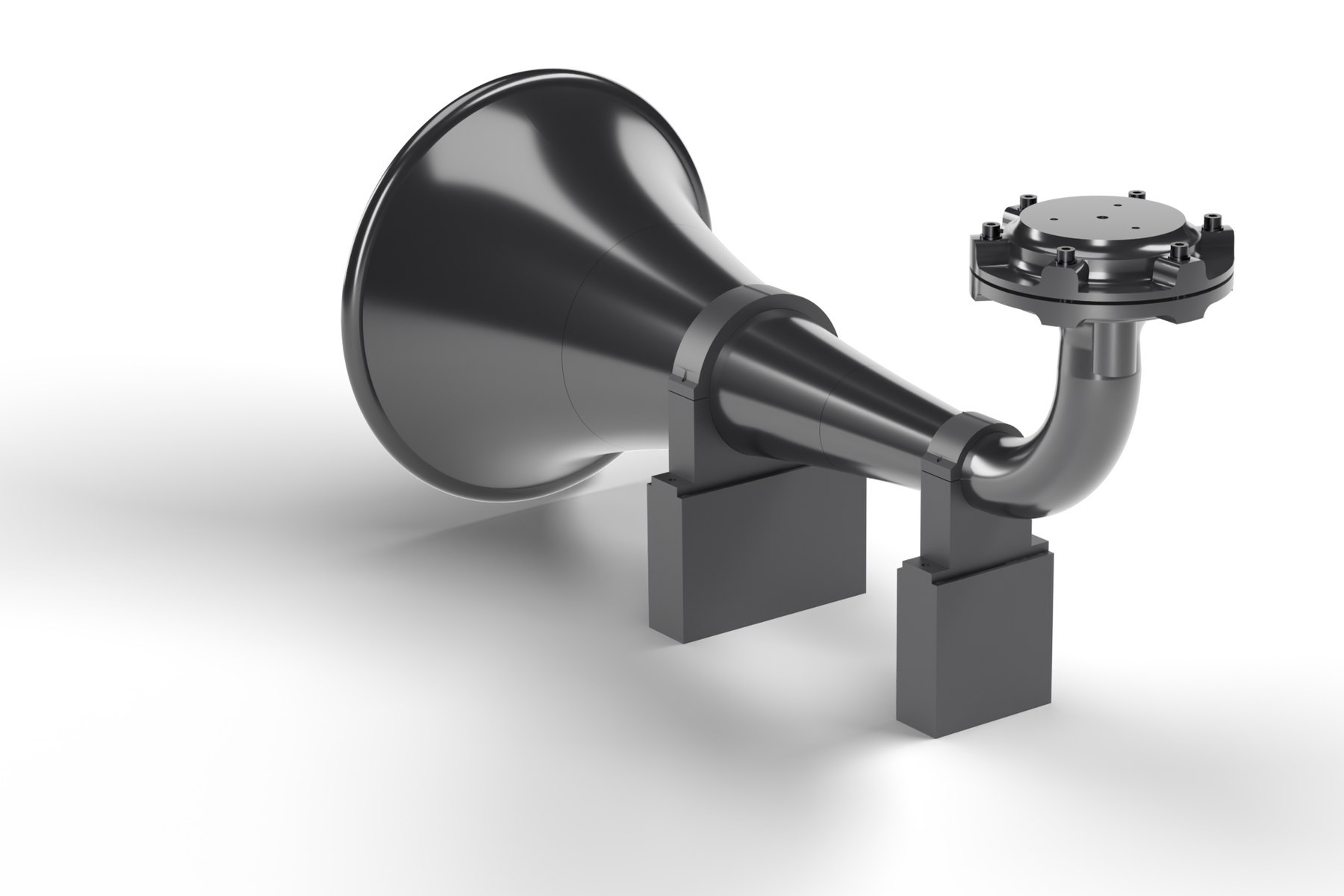

It plays one deep note, far lower than the T5's chord. The chamber at the back is the T-Series's own design built at twice the size, with a 170 mm stainless diaphragm.
It comes in sections that screw together by hand, with two mounting clamps on risers that hold the mouth clear of the surface it is bolted to. Size with the risers (length x width x height): 41.1 x 19.1 x 21.1 in (1044 x 486 x 535 mm). About 21 lb (9.5 kg). Air inlet 3/4 in NPT.
Coming soon. The first one is still to be built, and ordering opens once it has passed its sound test.
In the box
- The drum and gooseneck, assembled, sealed and sound-tested
- The bell: three rings and the mouth, which screw together by hand
- Two mounting clamps on risers, with their screws
- A picture-by-picture assembly guide and a warning label
You supply the air system and somewhere solid to bolt the two risers down (two M8 rods or bolts each).
Compressed air only, and very loud. Read the Safety notice and the owner's manual before you connect it. No pressure rating is stated.
